CSG Ellipsoid

CSG Ellipsoid

csg_ellipsoid(x = 0, y = 0, z = 0, axes = c(0.5, 1, 0.5))

Arguments

x

Default `0`. x-coordinate on the ellipsoid.

y

Default `0`. y-coordinate on the ellipsoid.

z

Default `0`. z-coordinate on the ellipsoid.

axes

Default `c(0.5,1,0.5)`. Ellipsoid principle axes.

Value

List describing the ellipsoid in the scene.

Examples

if(run_documentation()) {

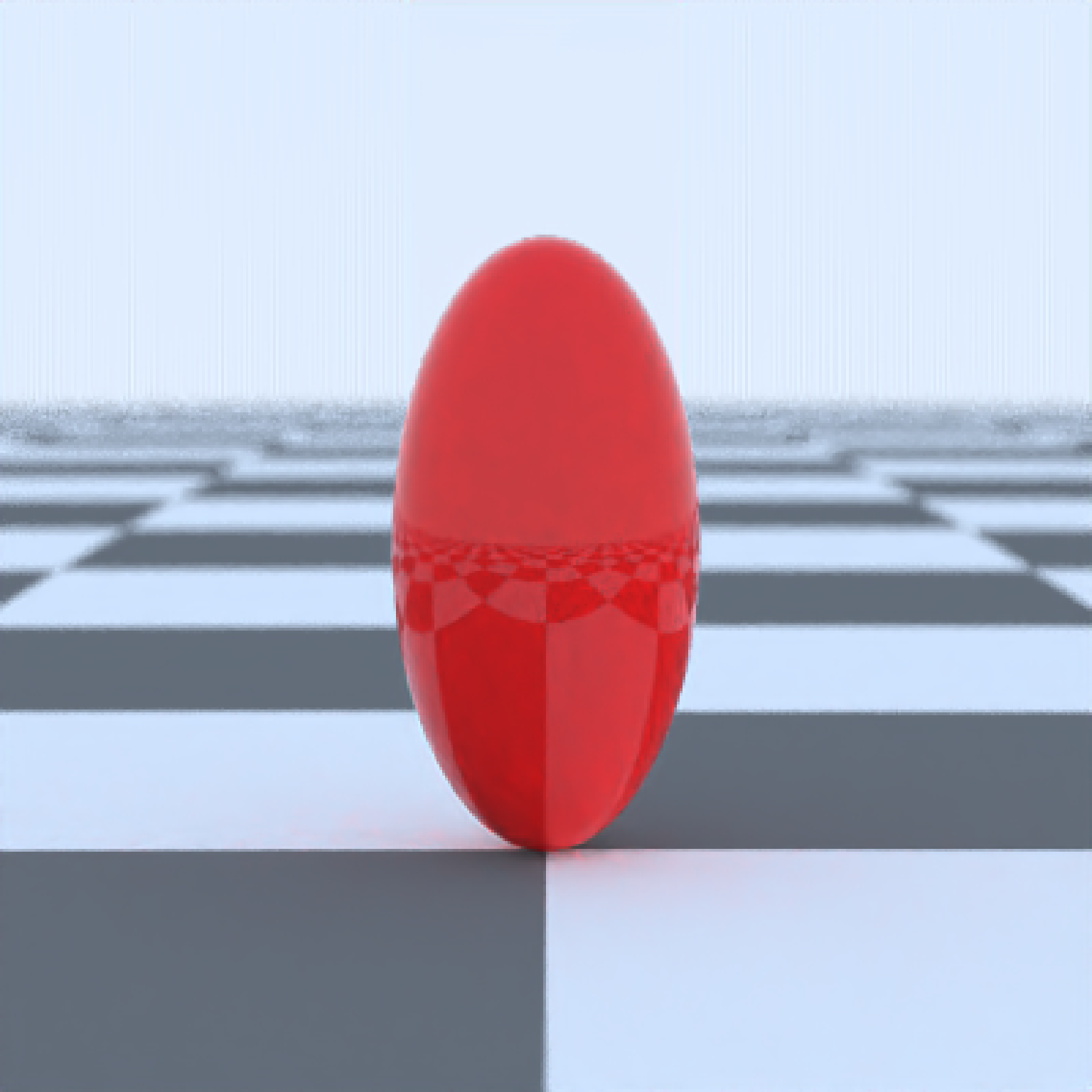

#Generate a basic ellipsoid:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_ellipsoid(),material=glossy(color="red"))) %>%
  render_scene(clamp_value=10, samples=16,fov=20)
  }

if(run_documentation()) {

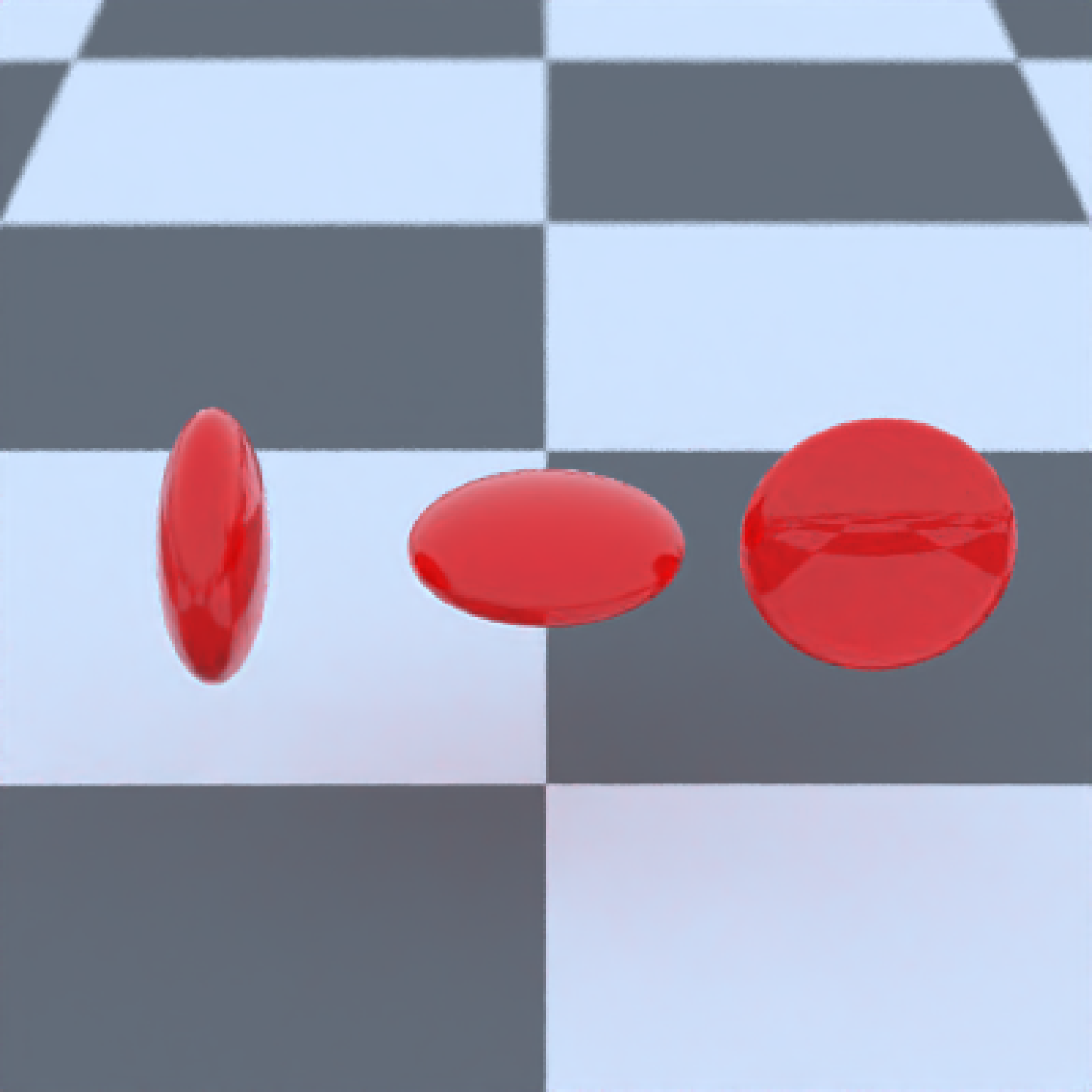

#Three different ellipsoids:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
 add_object(csg_object(csg_group(list(
   csg_ellipsoid(x=-1.2, axes = c(0.2,0.5,0.5)),
   csg_ellipsoid(x=0, axes = c(0.5,0.2,0.5)),
   csg_ellipsoid(x=1.2, axes = c(0.5,0.5,0.2)))),
   material=glossy(color="red"))) %>%
 render_scene(clamp_value=10, samples=16,fov=20,lookfrom=c(0,5,10))
 }

if(run_documentation()) {

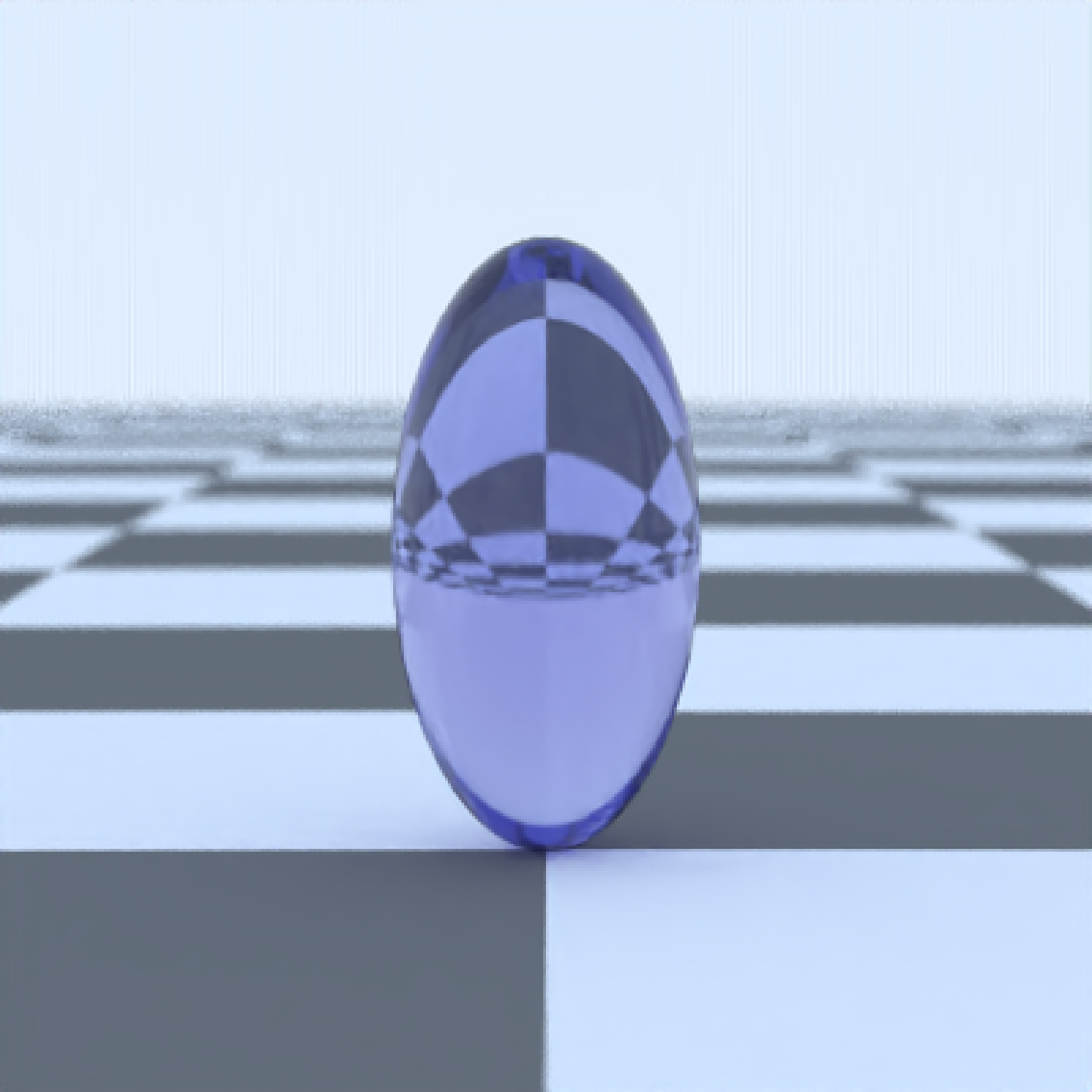

#Generate a glass ellipsoid:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_ellipsoid(),material=dielectric(attenuation = c(1,1,0.3)))) %>%
  render_scene(clamp_value=10, samples=16,fov=20)
  }

if(run_documentation()) {
#Generate a glass ellipsoid in a Cornell box:
generate_cornell() %>%
  add_object(csg_object(csg_ellipsoid(x=555/2,y=555/2,z=555/2,axes=c(100,150,200)),
    material=dielectric(attenuation = c(1,0.3,1)/200))) %>%
  render_scene(clamp_value=10, samples=16)
}
#> Setting default values for Cornell box: lookfrom `c(278,278,-800)` lookat `c(278,278,555/2)` fov `40` .
