CSG Triangle

CSG Triangle

csg_triangle(v1 = c(0, 1, 0), v2 = c(1, 0, 0), v3 = c(-1, 0, 0))

Arguments

v1

Default `c(0,1,0)`. First vertex.

v2

Default `c(1,0,0)`. Second vertex.

v3

Default `c(-1,0,0)`. Third vertex.

Value

List describing the triangle in the scene.

Examples

if(run_documentation()) {

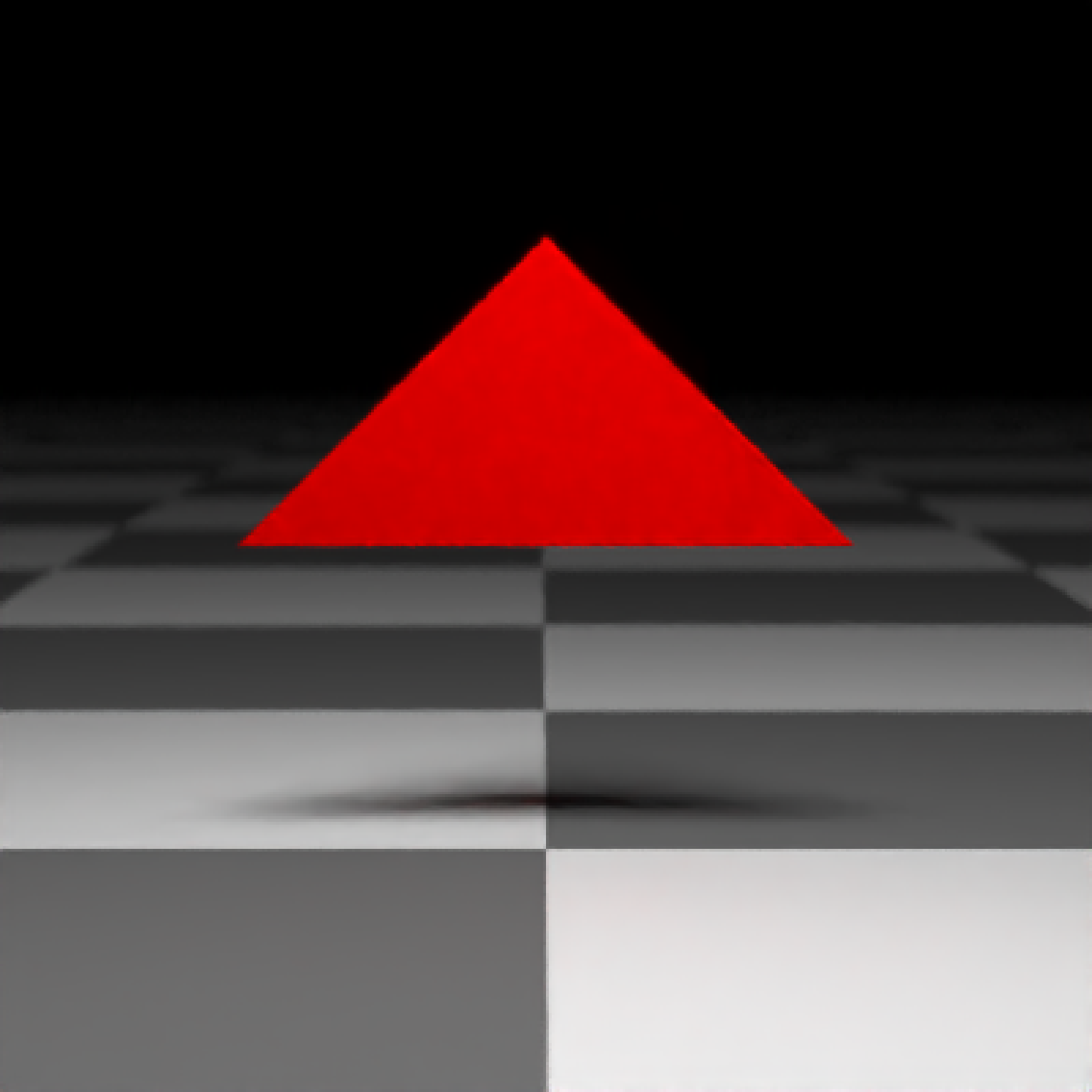

#Generate a basic triangle:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_triangle(),material=diffuse(color="red"))) %>%
  add_object(sphere(y=5,z=3,material=light(intensity=30))) %>%
  render_scene(clamp_value=10, samples=16,fov=20)
  }

if(run_documentation()) {

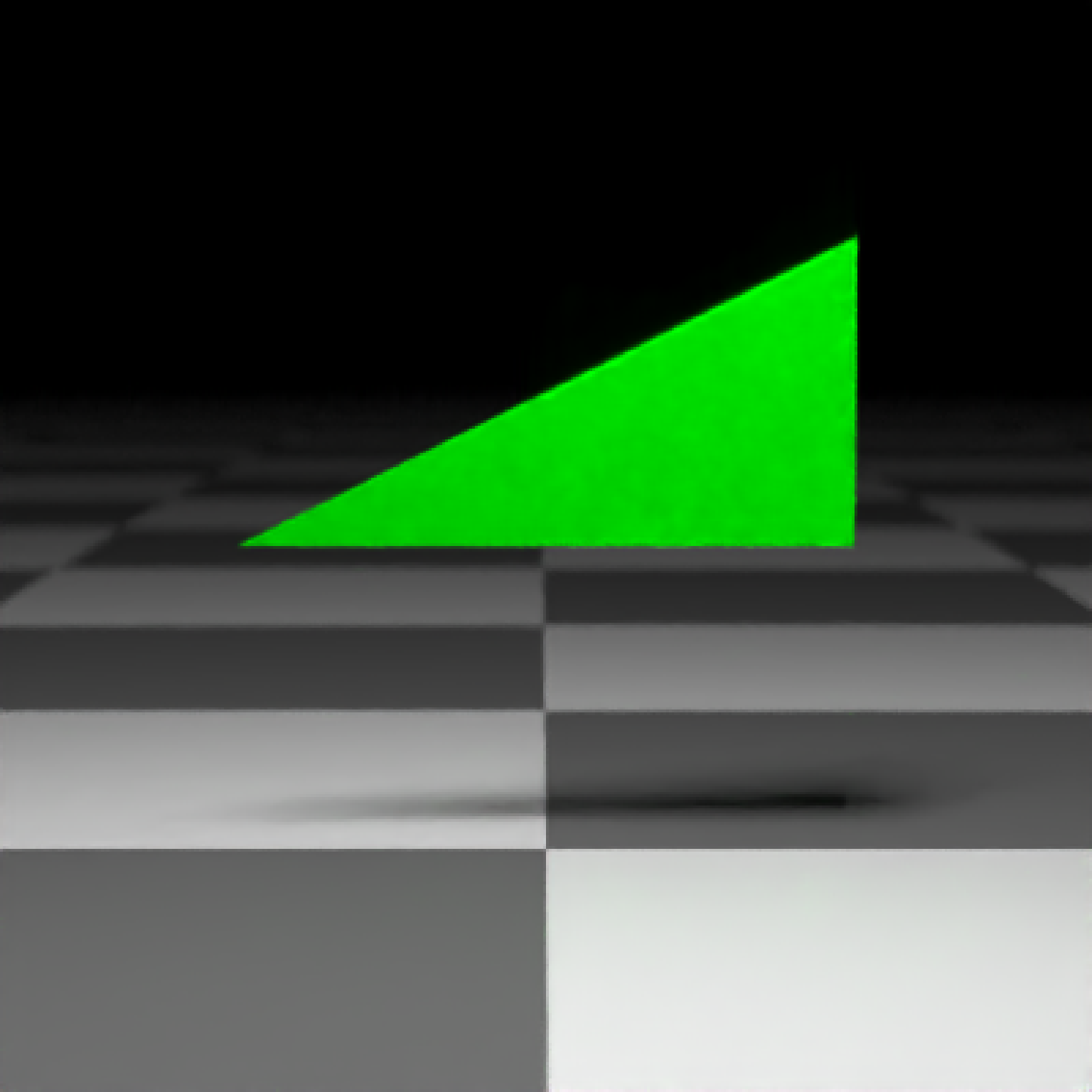

#Change a vertex:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_triangle(v1 = c(1,1,0)),material=diffuse(color="green"))) %>%
  add_object(sphere(y=5,z=3,material=light(intensity=30))) %>%
  render_scene(clamp_value=10, samples=16,fov=20)
  }

if(run_documentation()) {

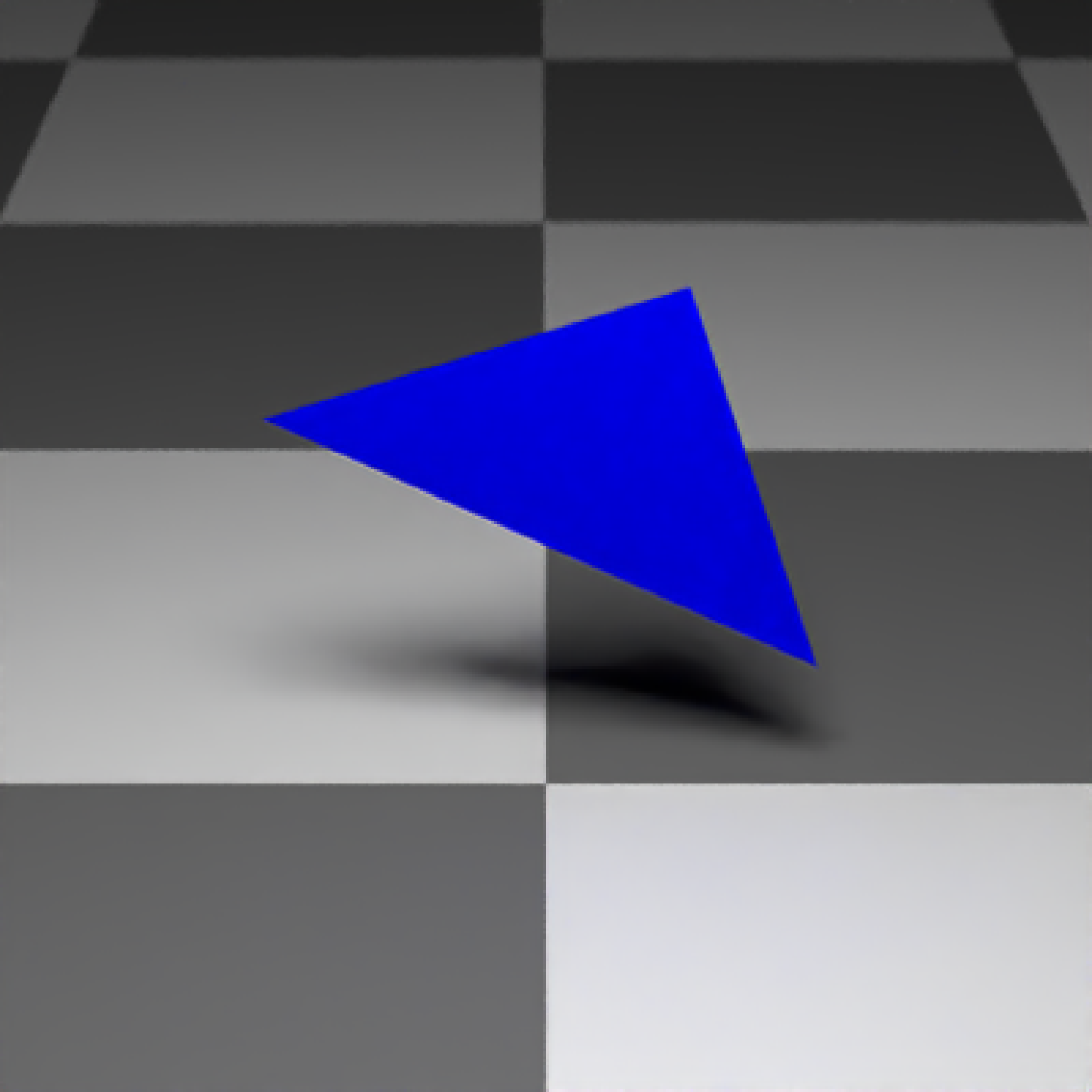

#Change all three vertices:
generate_ground(material=diffuse(checkercolor="grey20")) %>%
  add_object(csg_object(csg_triangle(v1 = c(0.5,1,0), v2 = c(1,-0.5,0), v3 = c(-1,0.5,0)),
                        material=diffuse(color="blue"))) %>%
  add_object(sphere(y=5,z=3,material=light(intensity=30))) %>%
  render_scene(clamp_value=10, samples=16,fov=20,lookfrom=c(0,5,10))
}
