Microfacet Material

microfacet(
  color = "white",
  roughness = 1e-04,
  transmission = FALSE,
  eta = 0,
  kappa = 0,
  microfacet = "tbr",
  checkercolor = NA,
  checkerperiod = 3,
  noise = 0,
  noisephase = 0,
  noiseintensity = 10,
  noisecolor = "#000000",
  gradient_color = NA,
  gradient_transpose = FALSE,
  gradient_point_start = NA_real_,
  gradient_point_end = NA_real_,
  gradient_type = "hsv",
  image_texture = NA_character_,
  image_repeat = 1,
  alpha_texture = NA_character_,
  bump_texture = NA_character_,
  bump_intensity = 1,
  roughness_texture = NA_character_,
  roughness_range = c(1e-04, 0.2),
  roughness_flip = FALSE,
  importance_sample = FALSE
)

Arguments

color

Default `white`. The color of the surface. Can be either a hexadecimal code, R color string, or a numeric rgb vector listing three intensities between `0` and `1`.

roughness

Default `0.0001`. Roughness of the surface, between `0` (smooth) and `1` (diffuse). Can be either a single number, or two numbers indicating an anisotropic distribution of normals. `0` is a smooth surface, while `1` is extremely rough. This can be used to create a wide-variety of materials (e.g. `0-0.01` is specular metal, `0.02`-`0.1` is brushed metal, `0.1`-`0.3` is a rough metallic surface , `0.3`-`0.5` is diffuse, and above that is a rough satin-like material). Two numbers will specify the x and y roughness separately (e.g. `roughness = c(0.01, 0.001)` gives an etched metal effect). If `0`, this defaults to the `metal()` material for faster evaluation.

transmission

Default `FALSE`. If `TRUE`, this material will be a rough dielectric instead of a rough metallic surface.

eta

Default `0`. Wavelength dependent refractivity of the material (red, green, and blue channels). If single number, will be repeated across all three channels. If `transmission = TRUE`, this is a single value representing the index of refraction of the material.

kappa

Default `0`. Wavelength dependent absorption of the material (red, green, and blue channels). If single number, will be repeated across all three channels. If `transmission = TRUE`, this length-3 vector specifies the attenuation of the dielectric (analogous to the dielectric `attenuation` argument).

microfacet

Default `tbr`. Type of microfacet distribution. Alternative option `beckmann`.

checkercolor

Default `NA`. If not `NA`, determines the secondary color of the checkered surface. Can be either a hexadecimal code, or a numeric rgb vector listing three intensities between `0` and `1`.

checkerperiod

Default `3`. The period of the checker pattern. Increasing this value makes the checker pattern bigger, and decreasing it makes it smaller

noise

Default `0`. If not `0`, covers the surface in a turbulent marble pattern. This value will determine the amount of turbulence in the texture.

noisephase

Default `0`. The phase of the noise. The noise will repeat at `360`.

noiseintensity

Default `10`. Intensity of the noise.

noisecolor

Default `#000000`. The secondary color of the noise pattern. Can be either a hexadecimal code, or a numeric rgb vector listing three intensities between `0` and `1`.

gradient_color

Default `NA`. If not `NA`, creates a secondary color for a linear gradient between the this color and color specified in `color`. Direction is determined by `gradient_transpose`.

gradient_transpose

Default `FALSE`. If `TRUE`, this will use the `v` coordinate texture instead of the `u` coordinate texture to map the gradient.

gradient_point_start

Default `NA`. If not `NA`, this changes the behavior from mapping texture coordinates to mapping to world space coordinates. This should be a length-3 vector specifying the x,y, and z points where the gradient begins with value `color`.

gradient_point_end

Default `NA`. If not `NA`, this changes the behavior from mapping texture coordinates to mapping to world space coordinates. This should be a length-3 vector specifying the x,y, and z points where the gradient begins with value `gradient_color`.

gradient_type

Default `hsv`. Colorspace to calculate the gradient. Alternative `rgb`.

image_texture

Default `NA`. A 3-layer RGB array or filename to be used as the texture on the surface of the object.

image_repeat

Default `1`. Number of times to repeat the image across the surface. `u` and `v` repeat amount can be set independently if user passes in a length-2 vector.

alpha_texture

Default `NA`. A matrix or filename (specifying a greyscale image) to be used to specify the transparency.

bump_texture

Default `NA`. A matrix, array, or filename (specifying a greyscale image) to be used to specify a bump map for the surface.

bump_intensity

Default `1`. Intensity of the bump map. High values may lead to unphysical results.

roughness_texture

Default `NA`. A matrix, array, or filename (specifying a greyscale image) to be used to specify a roughness map for the surface.

roughness_range

Default ` c(0.0001, 0.2)`. This is a length-2 vector that specifies the range of roughness values that the `roughness_texture` can take.

roughness_flip

Default `FALSE`. Setting this to `TRUE` flips the roughness values specified in the `roughness_texture` so high values are now low values and vice versa.

importance_sample

Default `FALSE`. If `TRUE`, the object will be sampled explicitly during the rendering process. If the object is particularly important in contributing to the light paths in the image (e.g. light sources, refracting glass ball with caustics, metal objects concentrating light), this will help with the convergence of the image.

Value

Single row of a tibble describing the microfacet material.

Examples

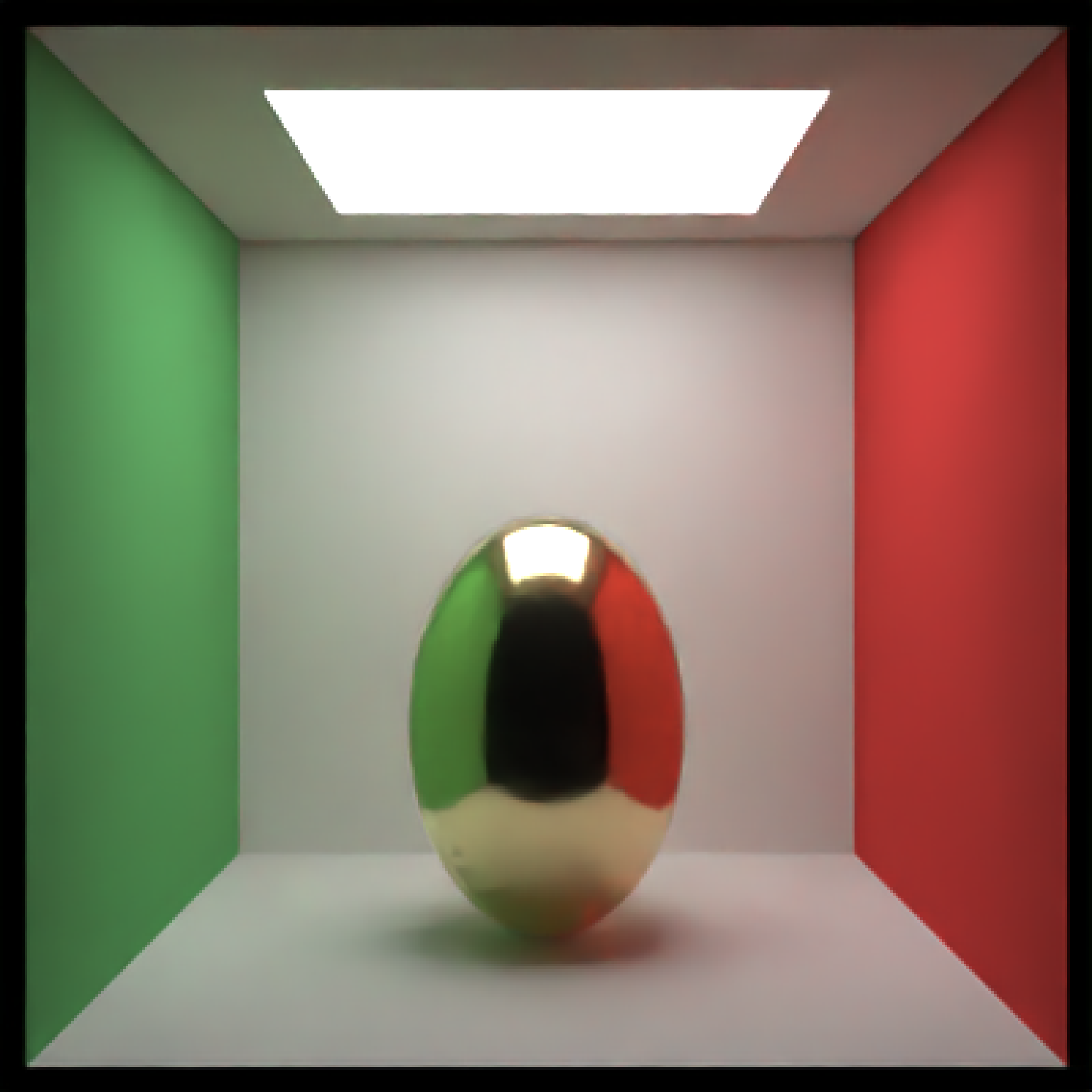

# Generate a golden egg, using eta and kappa taken from physical measurements
# See the website refractiveindex.info for eta and k data, use
# wavelengths 580nm (R), 530nm (G), and 430nm (B).
if(run_documentation()) {
generate_cornell() %>%
  add_object(ellipsoid(x=555/2,555/2,y=150, a=100,b=150,c=100,
             material=microfacet(roughness=0.1,
                                 eta=c(0.216,0.42833,1.3184), kappa=c(3.239,2.4599,1.8661)))) %>%
 render_scene(lookfrom=c(278,278,-800),lookat = c(278,278,0), samples=128,
             aperture=0, fov=40, parallel=TRUE,clamp_value=10)
 }

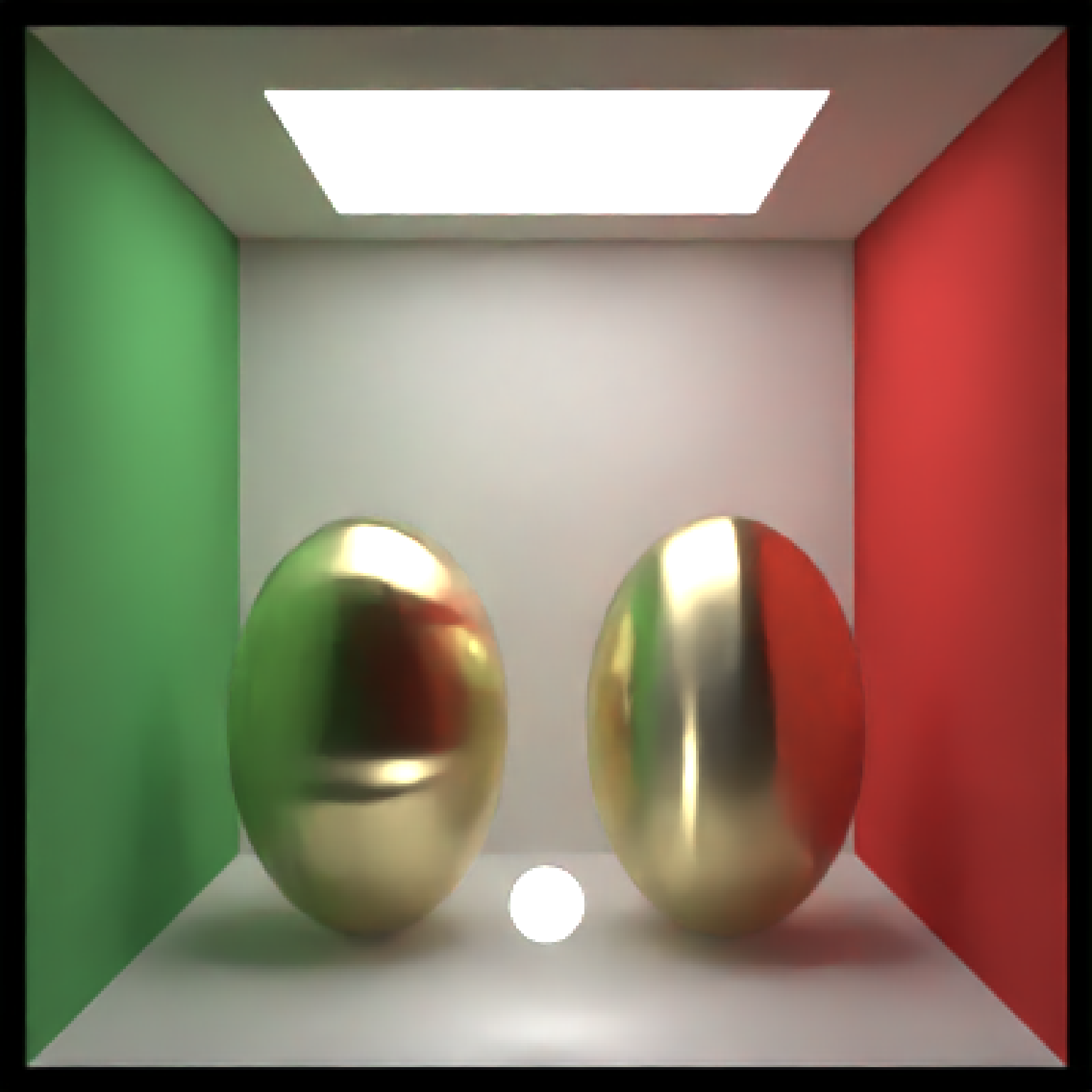

if(run_documentation()) {
#Make the roughness anisotropic (either horizontal or vertical), adding an extra light in front
#to show off the different microfacet orientations
generate_cornell() %>%
  add_object(sphere(x=555/2,z=50,y=75,radius=20,material=light())) %>%
  add_object(ellipsoid(x=555-150,555/2,y=150, a=100,b=150,c=100,
             material=microfacet(roughness=c(0.3,0.1),
                                 eta=c(0.216,0.42833,1.3184), kappa=c(3.239,2.4599,1.8661)))) %>%
 add_object(ellipsoid(x=150,555/2,y=150, a=100,b=150,c=100,
             material=microfacet(roughness=c(0.1,0.3),
                                 eta=c(0.216,0.42833,1.3184), kappa=c(3.239,2.4599,1.8661)))) %>%
 render_scene(lookfrom=c(278,278,-800),lookat = c(278,278,0), samples=128,
             aperture=0, fov=40,  parallel=TRUE,clamp_value=10)
}

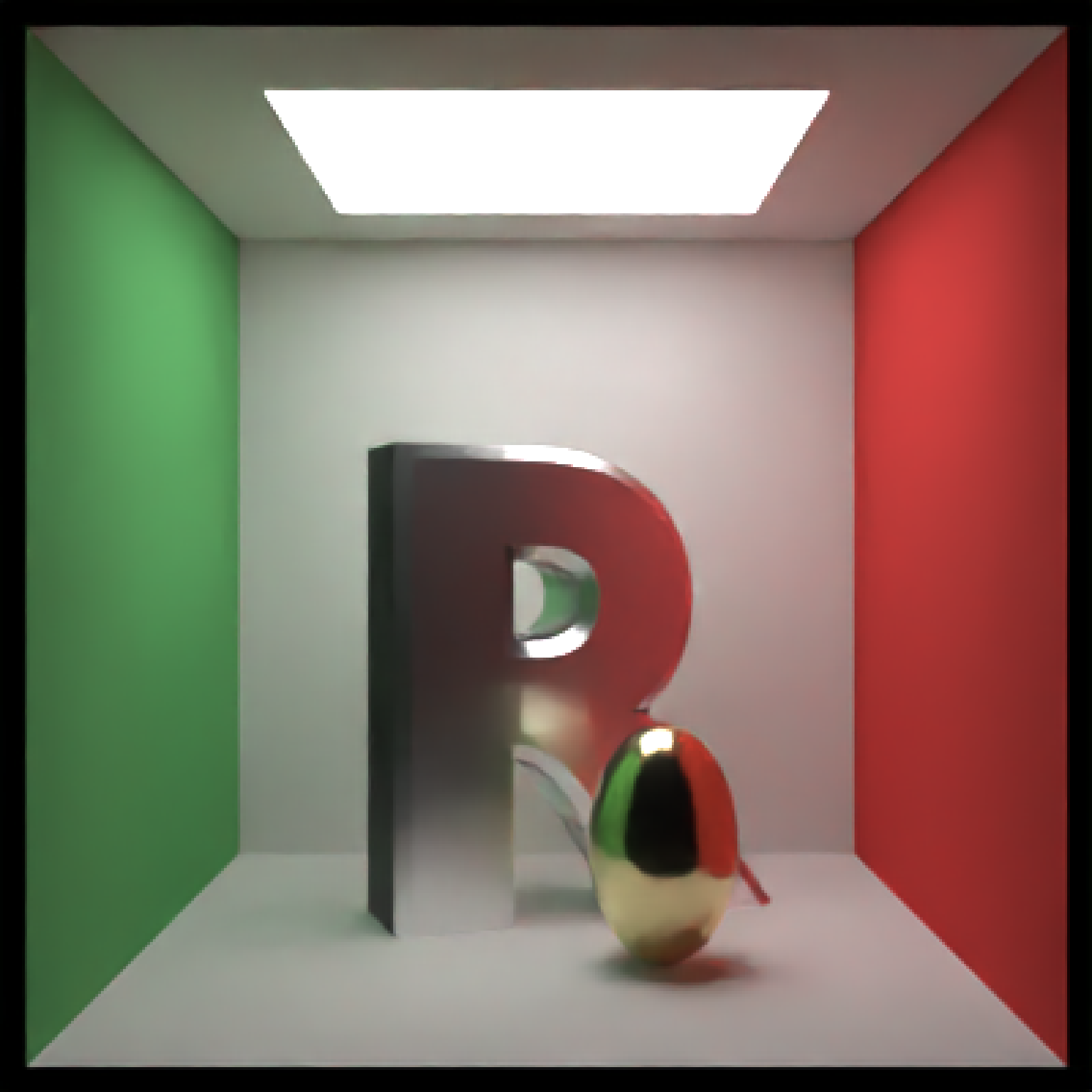

if(run_documentation()) {
#Render a rough silver R with a smaller golden egg in front
generate_cornell() %>%
  add_object(obj_model(r_obj(simple_r = TRUE),
                       x=555/2,z=350,y=0, scale_obj = 200, angle=c(0,200,0),
             material=microfacet(roughness=0.2,
                                 eta=c(1.1583,0.9302,0.5996), kappa=c(6.9650,6.396,5.332)))) %>%
 add_object(ellipsoid(x=200,z=200,y=80, a=50,b=80,c=50,
             material=microfacet(roughness=0.1,
                                 eta=c(0.216,0.42833,1.3184), kappa=c(3.239,2.4599,1.8661)))) %>%
 render_scene(lookfrom=c(278,278,-800),lookat = c(278,278,0), samples=128,
             aperture=0, fov=40, parallel=TRUE,clamp_value=10)
 }

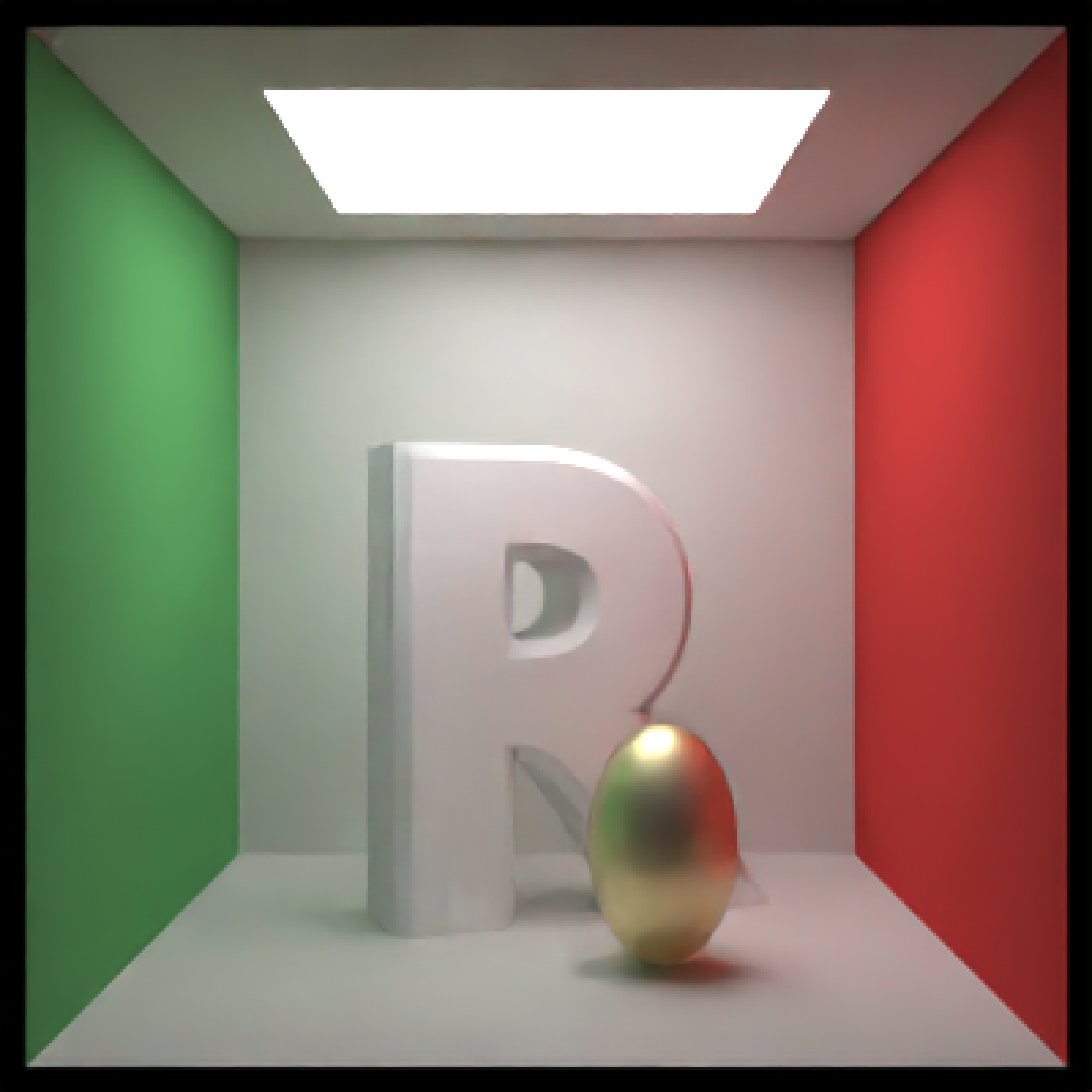

if(run_documentation()) {
#Increase the roughness
generate_cornell() %>%
  add_object(obj_model(r_obj(simple_r = TRUE),
                       x=555/2,z=350,y=0, scale_obj = 200, angle=c(0,200,0),
             material=microfacet(roughness=0.5,
                                 eta=c(1.1583,0.9302,0.5996), kappa=c(6.9650,6.396,5.332)))) %>%
 add_object(ellipsoid(x=200,z=200,y=80, a=50,b=80,c=50,
             material=microfacet(roughness=0.3,
                                 eta=c(0.216,0.42833,1.3184), kappa=c(3.239,2.4599,1.8661)))) %>%
 render_scene(lookfrom=c(278,278,-800),lookat = c(278,278,0), samples=128,
             aperture=0, fov=40, parallel=TRUE,clamp_value=10)
 }

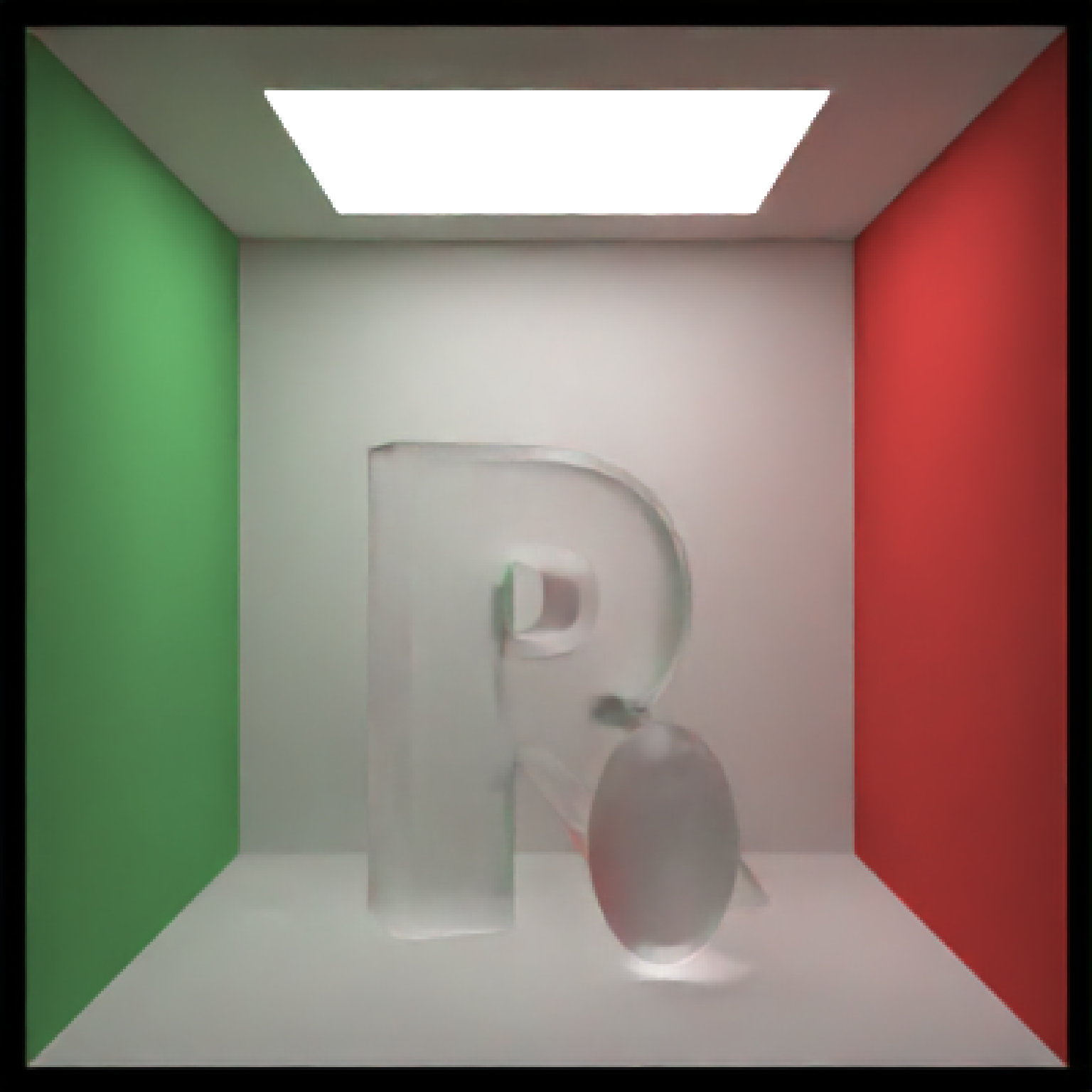

if(run_documentation()) {
 #Use transmission for a rough dielectric
generate_cornell() %>%
  add_object(obj_model(r_obj(simple_r = TRUE),
                       x=555/2,z=350,y=0, scale_obj = 200, angle=c(0,200,0),
             material=microfacet(roughness=0.3, transmission=T, eta=1.6))) %>%
 add_object(ellipsoid(x=200,z=200,y=80, a=50,b=80,c=50,
             material=microfacet(roughness=0.3, transmission=T, eta=1.6))) %>%
 render_scene(lookfrom=c(278,278,-800),lookat = c(278,278,0), samples=128,
             aperture=0, fov=40, parallel=TRUE,clamp_value=10, min_variance=1e-6)
}
